ADUM4137WBRNZ

ADUM4137WBRNZ

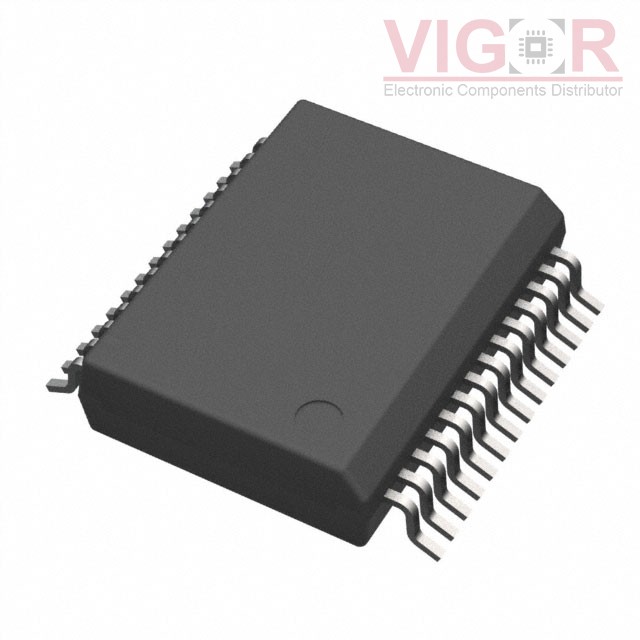

Image is for reference,
please contact us to get the real picture

Part No :

ADUM4137WBRNZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
6A AUTOMOTIVE ISOLATED GATE DRIV
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
ADUM4137WBRNZ PDF
Availability
137 pieces
Unit Price
$9.54000

Current price of ADUM4137WBRNZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADUM4137WBRNZ Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tube
Part Status:Active
Technology:Magnetic Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):150kV/µs
Propagation Delay tpLH / tpHL (Max):131ns, 137ns
Pulse Width Distortion (Max):70ns (Min)
Rise / Fall Time (Typ):105ns, 107ns
Current - Output High, Low:-
Current - Peak Output:6A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:12V ~ 25V
Operating Temperature:-40°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC_W_FP
Approval Agency:CSA, UR, VDE
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
