HCPL-315J-000E

HCPL-315J-000E

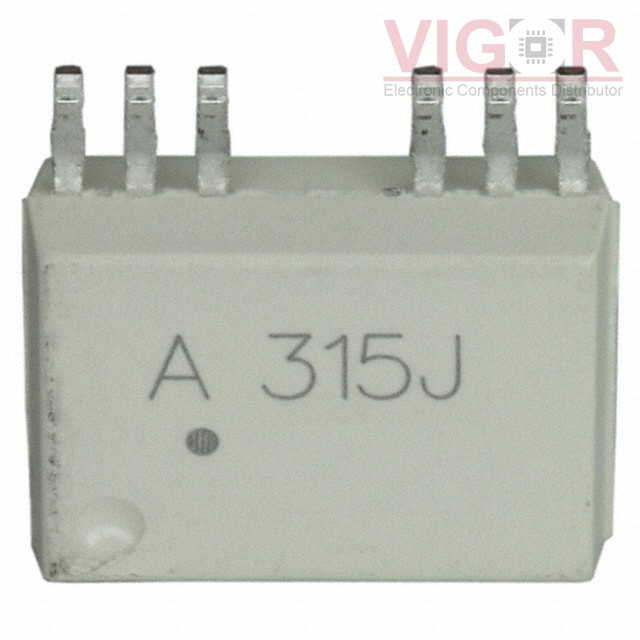

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-315J-000E

Manufacturer
Broadcom
Description
OPTOISO 5KV 2CH GATE DRIVER 16SO
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
HCPL-315J-000E PDF
Availability
0 pieces
Unit Price
$6.93000

Current price of HCPL-315J-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-315J-000E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:2
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Propagation Delay tpLH / tpHL (Max):500ns, 500ns
Pulse Width Distortion (Max):300ns
Rise / Fall Time (Typ):100ns, 100ns
Current - Output High, Low:500mA, 500mA
Current - Peak Output:600mA
Voltage - Forward (Vf) (Typ):1.6V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width), 12 Leads
Supplier Device Package:16-SO
Approval Agency:CSA, IEC/EN/DIN, UR
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
