SID1132K

SID1132K

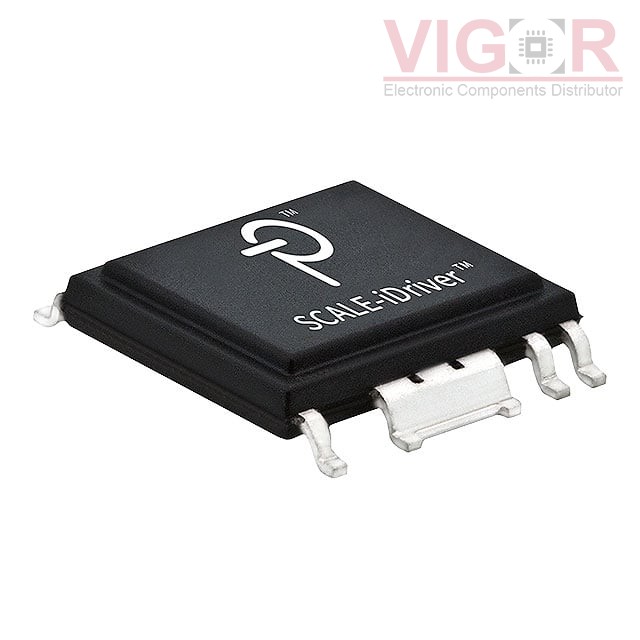

Image is for reference,
please contact us to get the real picture

Part No :

SID1132K

Manufacturer
Power Integrations
Description
DGTL ISO 5KV GATE DRVR ESOP-R16B
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
SID1132K PDF
Availability
2630 pieces
Unit Price
$4.66000

Current price of SID1132K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SID1132K Specifications
Type Description
Series:SCALE-iDriver™
Package:Tube
Part Status:Active
Technology:Magnetic Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):-
Propagation Delay tpLH / tpHL (Max):340ns, 330ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):450ns, 450ns (Max)
Current - Output High, Low:1.2A, 1.3A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:22V ~ 28V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package:eSOP-R16B
Approval Agency:-
