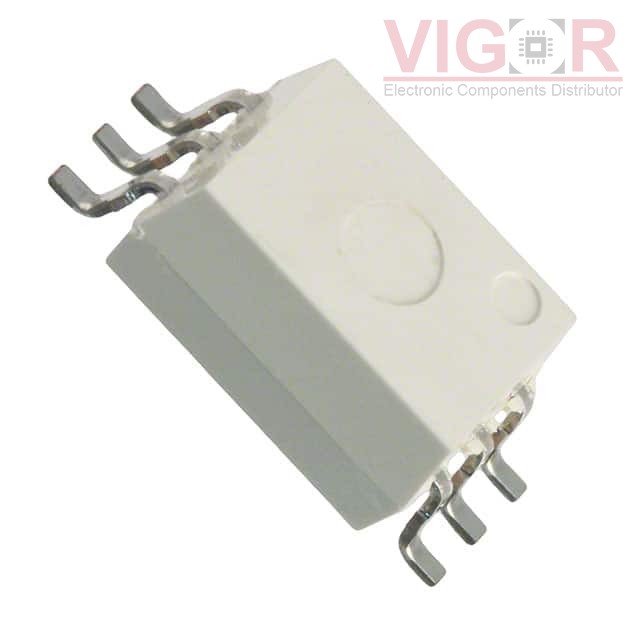

TLP700H(F)

Image is for reference,
please contact us to get the real picture

Part No :: TLP700H(F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISO 5KV GATE DRIVER 6SDIP GW

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: TLP700H(F) PDF

Availability: 24 pieces

Unit Price: ~~$1.80000~~

Current price of TLP700H(F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP700H(F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	250ns
Rise / Fall Time (Typ):	15ns, 8ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	20 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP
Approval Agency:	cUL, UL

Please confirm the specifications of the products when ordering.
