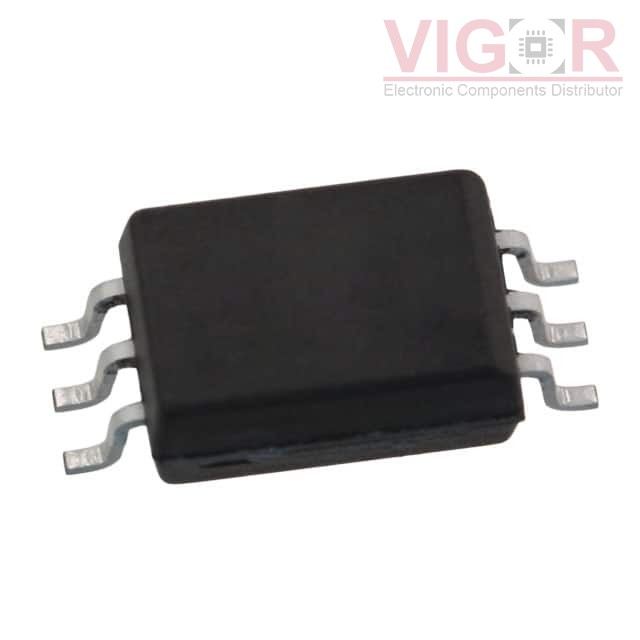

ACPL-W346-060E

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-W346-060E

Manufacturer: Broadcom

Description: OPTOISO 5KV 1CH GATE DRIVER 6SO

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: ACPL-W346-060E PDF

Availability: 0 pieces

Unit Price: ~~$2.14008~~

Current price of ACPL-W346-060E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-W346-060E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	50kV/µs
Propagation Delay tpLH / tpHL (Max):	120ns, 120ns
Pulse Width Distortion (Max):	50ns
Rise / Fall Time (Typ):	8ns, 8ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 20V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SO Stretched
Approval Agency:	CSA, IEC/EN/DIN, UR
