HCPL-3120#500

HCPL-3120#500

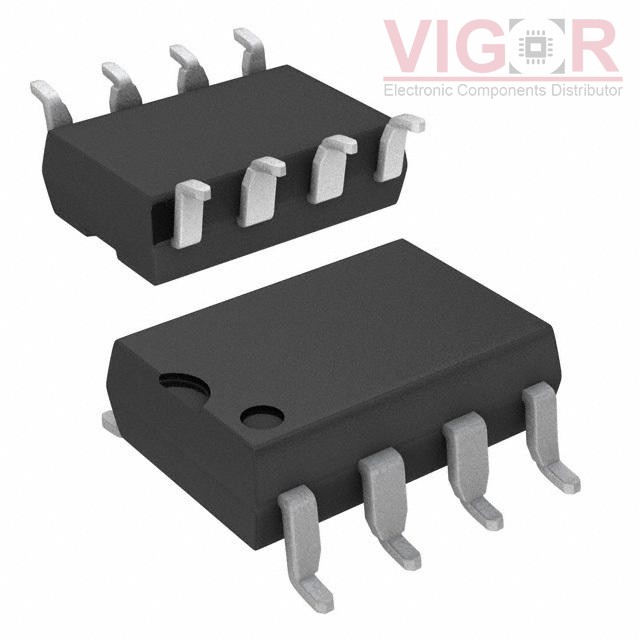

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-3120#500

Manufacturer
Broadcom
Description
OPTOISO 3.75KV GATE DRVR 8DIP GW
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
HCPL-3120#500 PDF
Availability
0 pieces
Unit Price
$1.75019

Current price of HCPL-3120#500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-3120#500 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):25kV/µs
Propagation Delay tpLH / tpHL (Max):500ns, 500ns
Pulse Width Distortion (Max):300ns
Rise / Fall Time (Typ):100ns, 100ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-DIP Gull Wing
Approval Agency:CSA, UR
