PS9531-AX

PS9531-AX

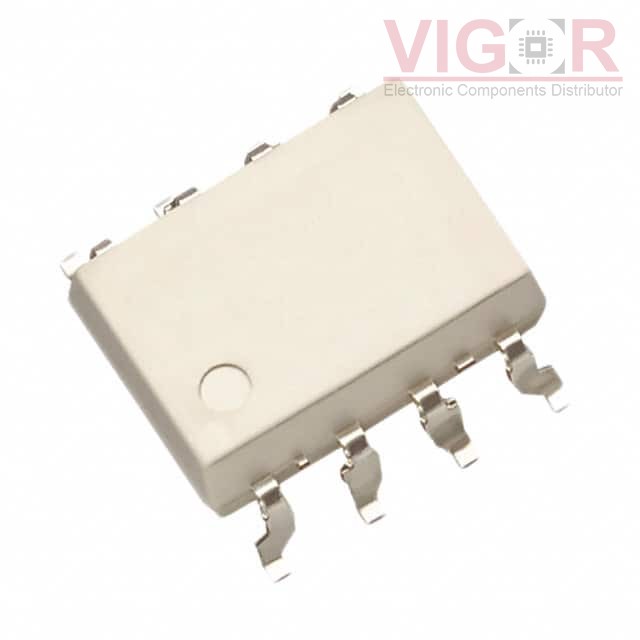

Image is for reference,
please contact us to get the real picture

Part No :

PS9531-AX

Manufacturer
CEL (California Eastern Laboratories)
Description
OPTOISO 5KV 1CH GATE DRIVER 8DIP
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
PS9531-AX PDF
Availability
38 pieces
Unit Price
$3.49000

Current price of PS9531-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9531-AX Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):50kV/µs
Propagation Delay tpLH / tpHL (Max):175ns, 175ns
Pulse Width Distortion (Max):75ns
Rise / Fall Time (Typ):40ns, 40ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.56V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
Approval Agency:CSA, SEMKO, UL
