ACPL-36JV-500E

ACPL-36JV-500E

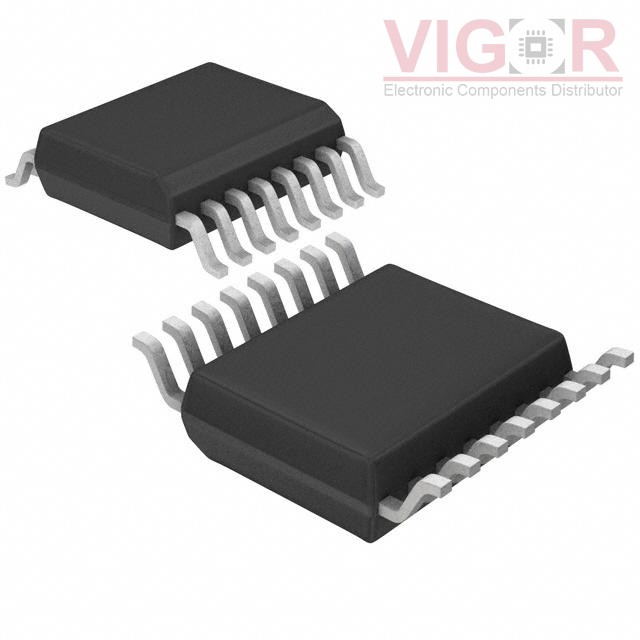

Image is for reference,
please contact us to get the real picture

Part No :

ACPL-36JV-500E

Manufacturer
Broadcom
Description
OPTOISO 3.75KV 1CH GATE DVR 16SO
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
ACPL-36JV-500E PDF
Availability
0 pieces
Unit Price
$4.70873

Current price of ACPL-36JV-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-36JV-500E Specifications
Type Description
Series:Automotive, AEC-Q100, R²Coupler™
Package:Tape & Reel (TR)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):15kV/µs
Propagation Delay tpLH / tpHL (Max):500ns, 500ns
Pulse Width Distortion (Max):300ns
Rise / Fall Time (Typ):100ns, 100ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SO
Approval Agency:-
