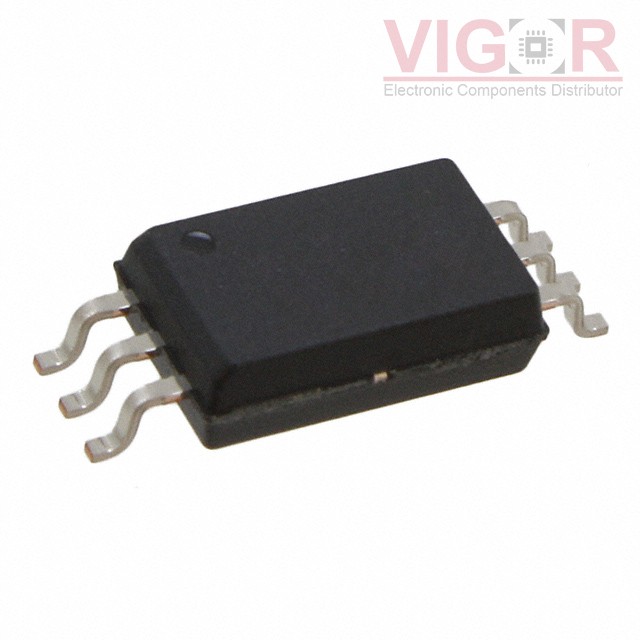

SI8261BCD-C-ISR

SI8261BCD-C-ISR

Image is for reference,
please contact us to get the real picture

Part No :

SI8261BCD-C-ISR

Manufacturer
Silicon Labs
Description
DGTL ISO 5KV 1CH GATE DRVR 6SDIP
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
SI8261BCD-C-ISR PDF
Availability
0 pieces
Unit Price
$1.98000

Current price of SI8261BCD-C-ISR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8261BCD-C-ISR Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):60ns, 50ns
Pulse Width Distortion (Max):28ns
Rise / Fall Time (Typ):5.5ns, 8.5ns
Current - Output High, Low:500mA, 1.2A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):2.8V (Max)
Current - DC Forward (If) (Max):30 mA
Voltage - Output Supply:13.5V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:6-SDIP Gull Wing
Approval Agency:CQC, CSA, UR, VDE
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

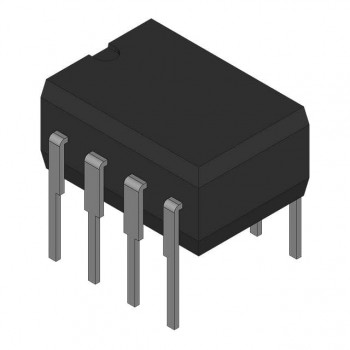

HOT FOD3182TV

FOD3182TV

LOGIC IC OUTPUT OPTOCOUPLER, 500
HOT TLP5214A(D4-TP,E

TLP5214A(D4-TP,E

OPTOCOUPLER IGBT 4A 110C OPR TEM

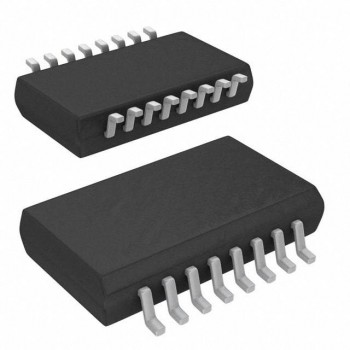

HOT ADUM4221-2BRIZ
