SID1102K

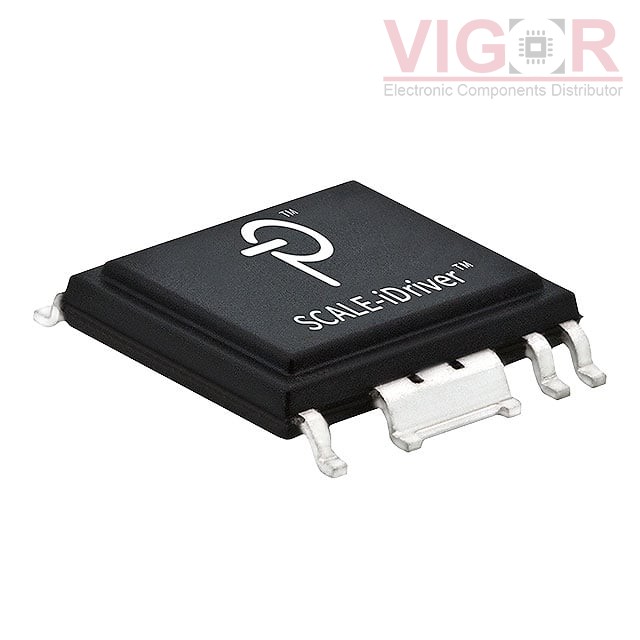

Image is for reference,
please contact us to get the real picture

Part No :: SID1102K

Manufacturer: Power Integrations

Description: DGTL ISO GATE DRVR

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: SID1102K PDF

Availability: 426 pieces

Unit Price: ~~$3.31000~~

Current price of SID1102K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SID1102K Specifications

Type	Description
Series:	SCALE-iDriver™
Package:	Tube
Part Status:	Active
Technology:	Magnetic Coupling
Number of Channels:	1
Voltage - Isolation:	1000Vrms
Common Mode Transient Immunity (Min):	100kV/µs
Propagation Delay tpLH / tpHL (Max):	350ns, 350ns
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	29ns, 14ns
Current - Output High, Low:	5A, 5A
Current - Peak Output:	-
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	22V ~ 28V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package:	eSOP-R16B
Approval Agency:	VDE

Please confirm the specifications of the products when ordering.
