SI8230AC-D-IS1

SI8230AC-D-IS1

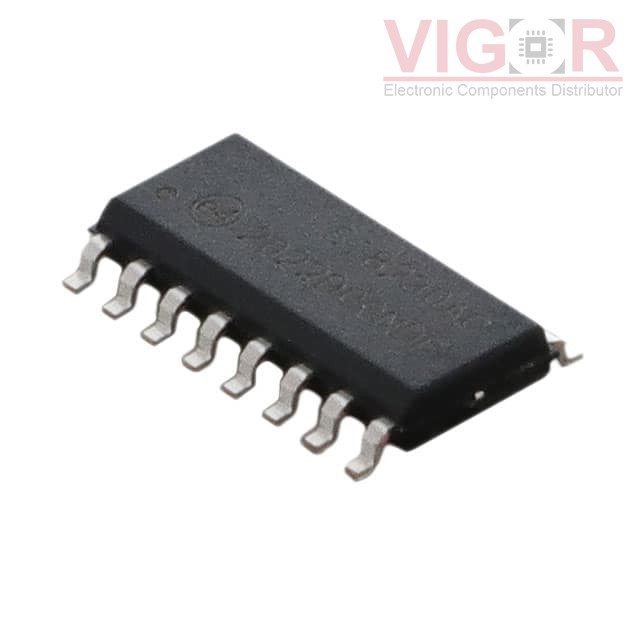

Image is for reference,
please contact us to get the real picture

Part No :

SI8230AC-D-IS1

Manufacturer
Silicon Labs
Description
DGTL ISO 3.75KV GATE DRVR 16SOIC
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SI8230AC-D-IS1 PDF
Availability
62 pieces
Unit Price
$1.79000

Current price of SI8230AC-D-IS1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8230AC-D-IS1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tube
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:2
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):20kV/µs
Propagation Delay tpLH / tpHL (Max):45ns, 45ns
Pulse Width Distortion (Max):5.6ns
Rise / Fall Time (Typ):20ns, 20ns (Max)
Current - Output High, Low:250mA, 500mA
Current - Peak Output:500mA
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:6.5V ~ 24V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SOIC
Approval Agency:CQC, CSA, UR, VDE
