FOD8320R2

FOD8320R2

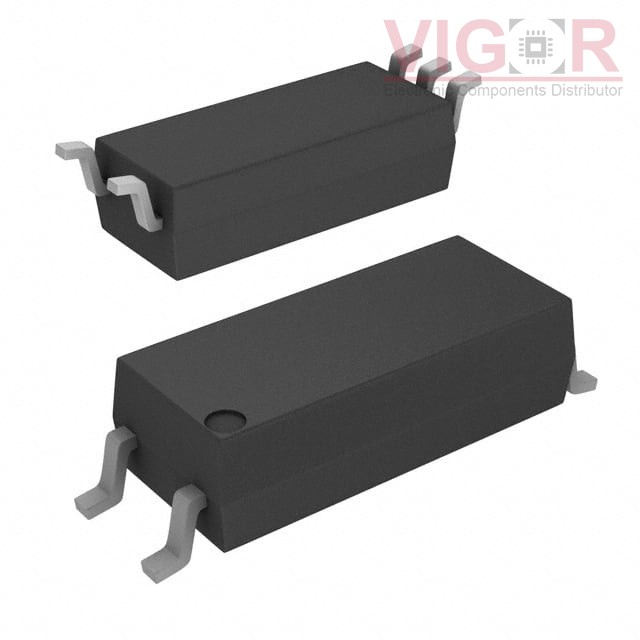

Image is for reference,
please contact us to get the real picture

Part No :

FOD8320R2

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 5KV 1CH GATE DRIVER 5SOP
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
FOD8320R2 PDF
Availability
48989000 pieces
Unit Price
$3.94000

Current price of FOD8320R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FOD8320R2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):400ns, 400ns
Pulse Width Distortion (Max):100ns
Rise / Fall Time (Typ):60ns, 60ns
Current - Output High, Low:2A, 2A
Current - Peak Output:3A
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:16V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.362", 9.20mm Width), 5 Leads
Supplier Device Package:5-SOP
Approval Agency:UL
