1EDF5673FXUMA1

1EDF5673FXUMA1

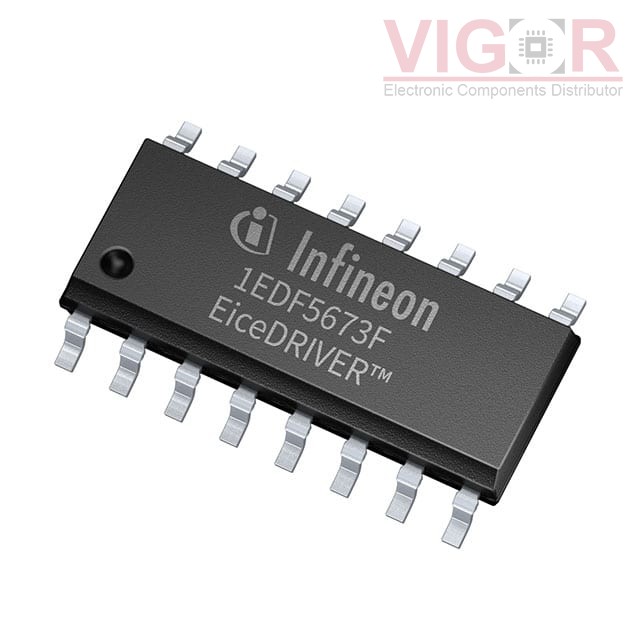

Image is for reference,
please contact us to get the real picture

Part No :

1EDF5673FXUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC DRIVER IC GAN DSO-16-11
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
1EDF5673FXUMA1 PDF
Availability
2120 pieces
Unit Price
$2.74000

Current price of 1EDF5673FXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1EDF5673FXUMA1 Specifications
Type Description
Series:EiceDriver™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:1500VDC
Common Mode Transient Immunity (Min):150V/ns
Propagation Delay tpLH / tpHL (Max):44ns, 44ns
Pulse Width Distortion (Max):18ns (Typ)
Rise / Fall Time (Typ):6.5ns, 4.5ns
Current - Output High, Low:4A, 8A
Current - Peak Output:-
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:3.13V ~ 3.47V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:PG-DSO-16-11
Approval Agency:CQC, CSA, UL, VDE
