SI8261ACD-C-ISR

SI8261ACD-C-ISR

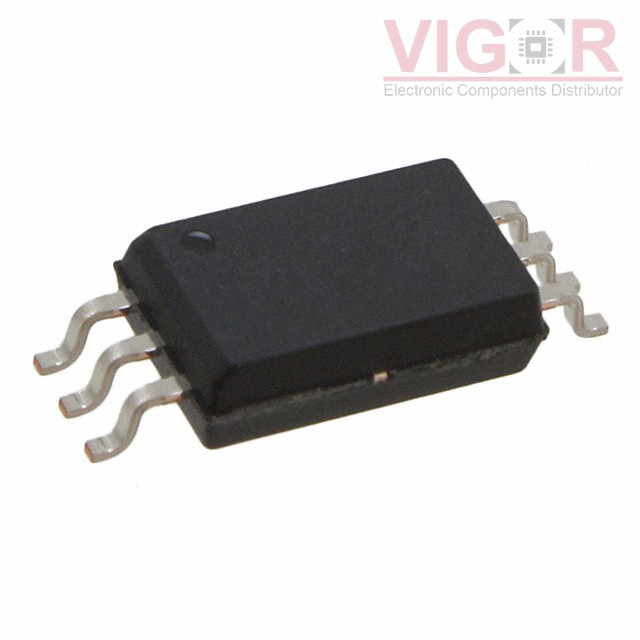

Image is for reference,
please contact us to get the real picture

Part No :

SI8261ACD-C-ISR

Manufacturer
Silicon Labs
Description
DGTL ISO 5KV 1CH GATE DRVR 6SDIP
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
SI8261ACD-C-ISR PDF
Availability
0 pieces
Unit Price
$1.68000

Current price of SI8261ACD-C-ISR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8261ACD-C-ISR Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):60ns, 50ns
Pulse Width Distortion (Max):28ns
Rise / Fall Time (Typ):5.5ns, 8.5ns
Current - Output High, Low:400mA, 600mA
Current - Peak Output:600mA
Voltage - Forward (Vf) (Typ):2.8V (Max)
Current - DC Forward (If) (Max):30 mA
Voltage - Output Supply:13.5V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:6-SDIP Gull Wing
Approval Agency:CQC, CSA, UR, VDE
