FOD8334

FOD8334

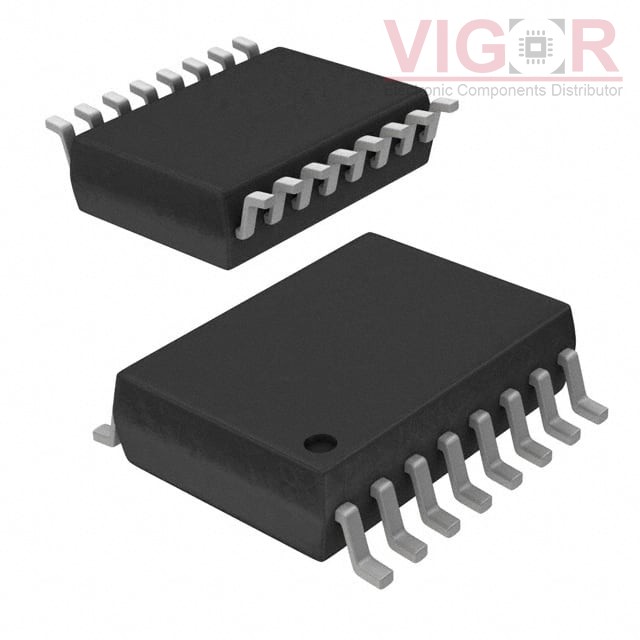

Image is for reference,
please contact us to get the real picture

Part No :

FOD8334

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
INPUT LED DRIVE 3.0A GATE DRIVER
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
FOD8334 PDF
Availability
0 pieces
Unit Price
$2.70000

Current price of FOD8334 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FOD8334 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:4243Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):250ns, 250ns
Pulse Width Distortion (Max):100ns
Rise / Fall Time (Typ):50ns, 50ns
Current - Output High, Low:3A, 3A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:3V ~ 15V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SO
Approval Agency:UL
