UCC5320SCDWVR

UCC5320SCDWVR

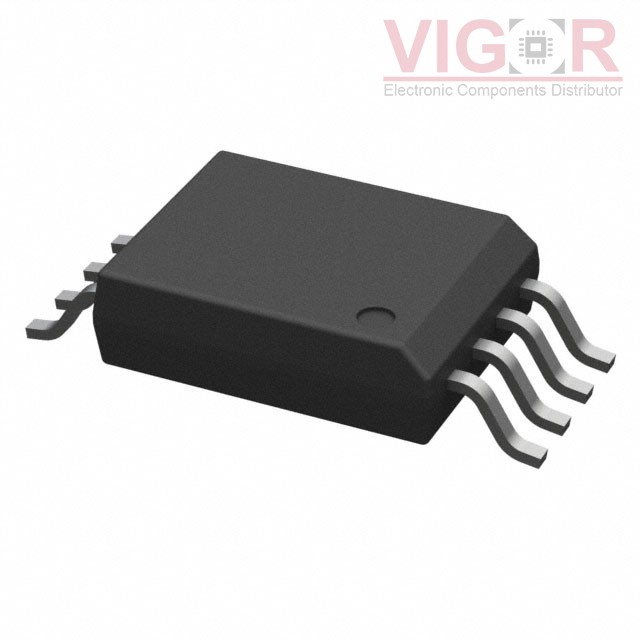

Image is for reference,
please contact us to get the real picture

Part No :

UCC5320SCDWVR

Manufacturer
Texas Instruments
Description
2A /2A 5KVRMS ISOGATE DR-SPLIT O
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
UCC5320SCDWVR PDF
Availability
0 pieces
Unit Price
$1.88000

Current price of UCC5320SCDWVR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UCC5320SCDWVR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:3000Vrms
Common Mode Transient Immunity (Min):100kV/µs
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Pulse Width Distortion (Max):20ns
Rise / Fall Time (Typ):12ns, 10ns
Current - Output High, Low:2.4A, 2.2A
Current - Peak Output:4.3A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:13.2V ~ 33V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:8-SOIC
Approval Agency:CQC, UR, VDE
