FOD8343

FOD8343

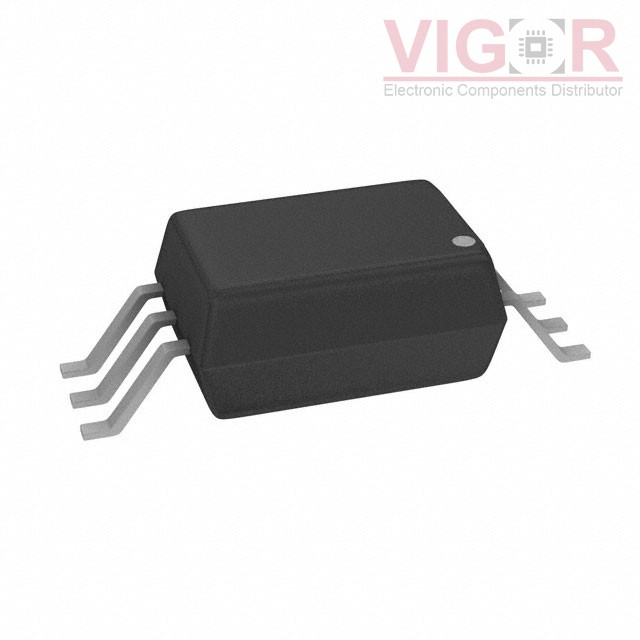

Image is for reference,
please contact us to get the real picture

Part No :

FOD8343

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 5KV 1CH GATE DRIVER 6SOP
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
FOD8343 PDF
Availability
0 pieces
Unit Price
$1.29525

Current price of FOD8343 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FOD8343 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):50kV/µs
Propagation Delay tpLH / tpHL (Max):210ns, 210ns
Pulse Width Distortion (Max):65ns
Rise / Fall Time (Typ):38ns, 24ns
Current - Output High, Low:3A, 3A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:10V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:6-SOP
Approval Agency:UR
