UCC5320ECDR

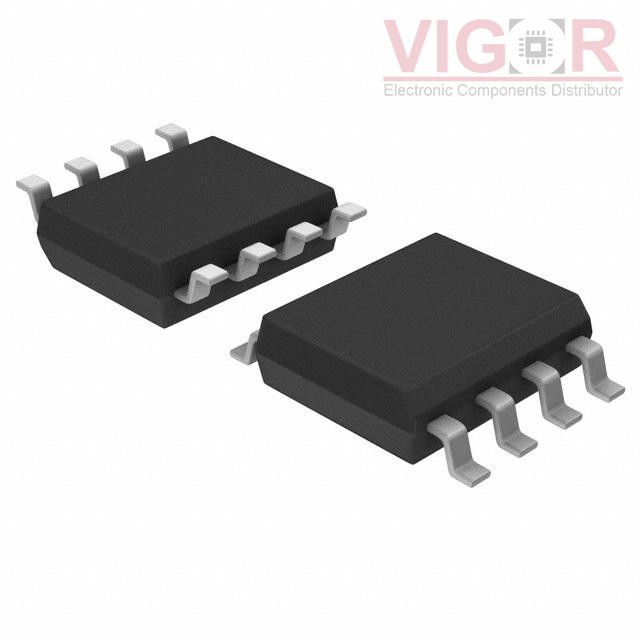

Image is for reference,
please contact us to get the real picture

Part No :: UCC5320ECDR

Manufacturer: Texas Instruments

Description: DGTL ISO 3KV 1CH GATE DRVR 8SOIC

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: UCC5320ECDR PDF

Availability: 1206 pieces

Unit Price: ~~$1.81000~~

Current price of UCC5320ECDR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UCC5320ECDR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	3000Vrms
Common Mode Transient Immunity (Min):	100kV/µs
Propagation Delay tpLH / tpHL (Max):	72ns, 75ns
Pulse Width Distortion (Max):	20ns
Rise / Fall Time (Typ):	12ns, 10ns
Current - Output High, Low:	2.4A, 2.2A
Current - Peak Output:	4.3A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	13.2V ~ 33V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
Approval Agency:	CQC, CSA, UR, VDE
