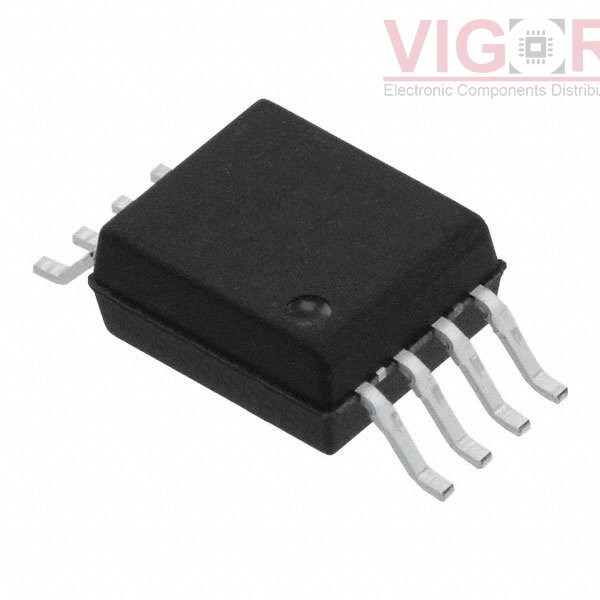

ACPL-K30T-000E

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-K30T-000E

Manufacturer: Broadcom

Description: OPTOISO 5KV 1CH GATE DRIVER 8SO

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: ACPL-K30T-000E PDF

Availability: 0 pieces

Unit Price: ~~$4.34000~~

Current price of ACPL-K30T-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-K30T-000E Specifications

Type	Description
Series:	Automotive, AEC-Q100, R²Coupler™
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	-
Propagation Delay tpLH / tpHL (Max):	2ms, 0.12ms
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	-
Current - Output High, Low:	-
Current - Peak Output:	-
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	30 mA
Voltage - Output Supply:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:	8-SO Stretched
Approval Agency:	CSA, UR

Please confirm the specifications of the products when ordering.
