HCPL-0302-560E

HCPL-0302-560E

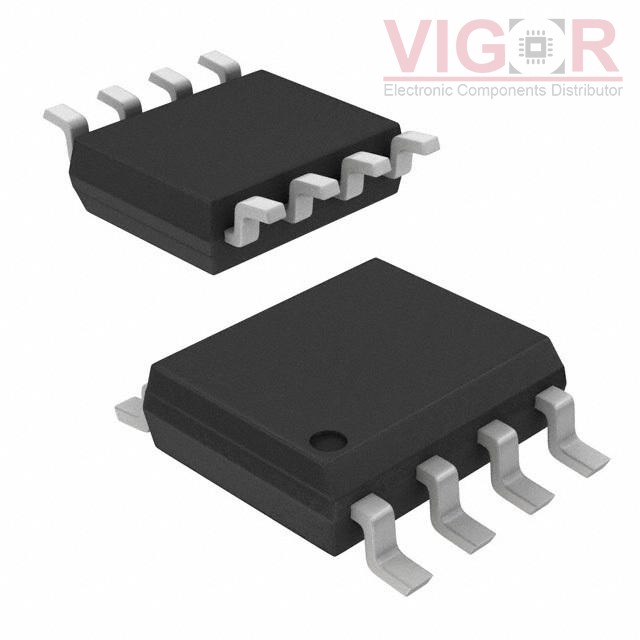

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-0302-560E

Manufacturer
Broadcom
Description
OPTOISO 3.75KV 1CH GATE DRVR 8SO
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HCPL-0302-560E PDF
Availability
0 pieces
Unit Price
$0.81302

Current price of HCPL-0302-560E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-0302-560E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):10kV/µs
Propagation Delay tpLH / tpHL (Max):700ns, 700ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):50ns, 50ns
Current - Output High, Low:200mA, 200mA
Current - Peak Output:400mA
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):20 mA
Voltage - Output Supply:10V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO
Approval Agency:CSA, IEC/EN/DIN, UR
