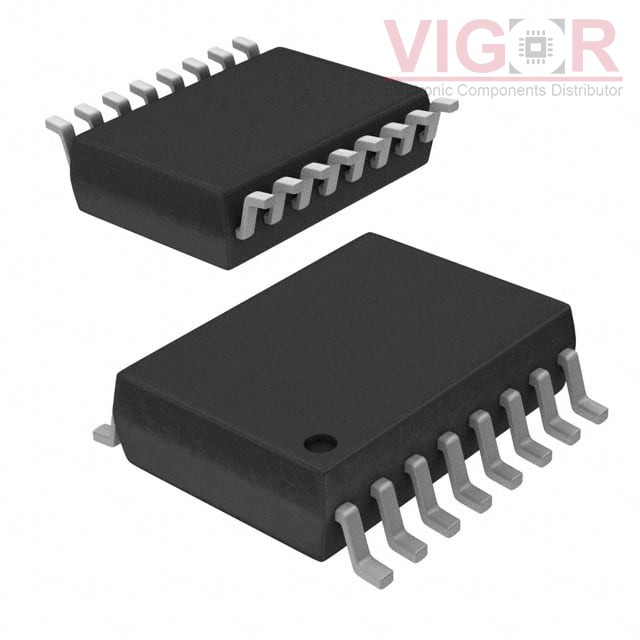

FOD8334R2

FOD8334R2

Image is for reference,
please contact us to get the real picture

Part No :

FOD8334R2

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
INPUT LED DRIVE 3.0A GATE DRIVER
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
FOD8334R2 PDF
Availability
0 pieces
Unit Price
$7.38225

Current price of FOD8334R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FOD8334R2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:4243Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):250ns, 250ns
Pulse Width Distortion (Max):100ns
Rise / Fall Time (Typ):50ns, 50ns
Current - Output High, Low:3A, 3A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:3V ~ 15V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SO
Approval Agency:UL
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

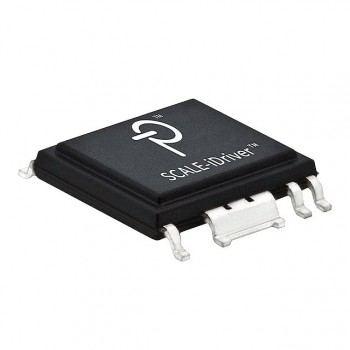

HOT SID1182K-TL

SID1182K-TL

DGTL ISO 5KV GATE DRVR ESOP-R16B
HOT ACPL-32JT-500E

ACPL-32JT-500E

OPTOISO 5KV 1CH GATE DRVR 16SOIC

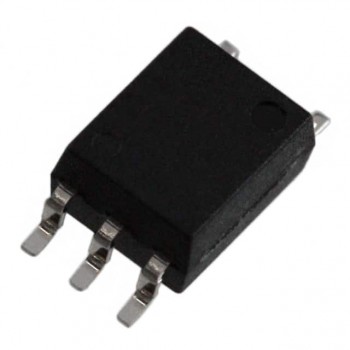

HOT TLP152(TPL,E
