ACNV2601-300E

ACNV2601-300E

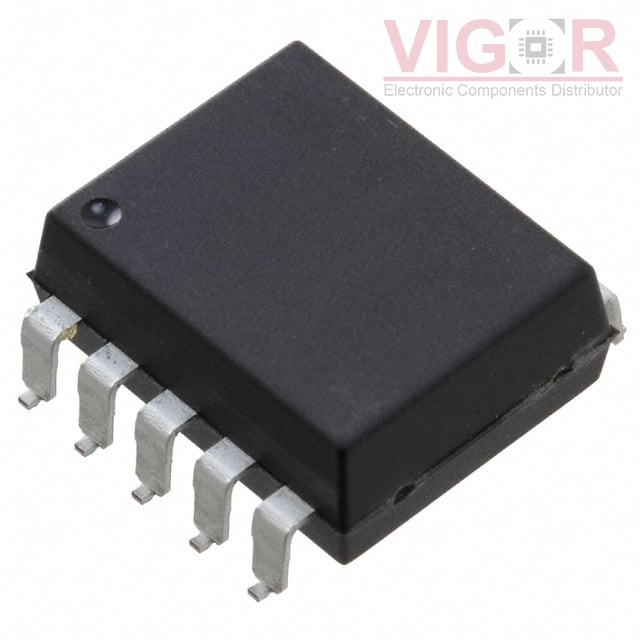

Image is for reference,
please contact us to get the real picture

Part No :

ACNV2601-300E

Manufacturer
Broadcom
Description
OPTOISO 7.5KV OPEN COLL 10DIP GW
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ACNV2601-300E PDF
Availability
6 pieces
Unit Price
$5.54000

Current price of ACNV2601-300E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACNV2601-300E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:7500Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:DC
Output Type:Open Collector, Schottky Clamped
Current - Output / Channel:50 mA
Data Rate:10MBd
Propagation Delay tpLH / tpHL (Max):80ns, 80ns
Rise / Fall Time (Typ):25ns, 10ns
Voltage - Forward (Vf) (Typ):1.64V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:10-SMD, Gull Wing
Supplier Device Package:10-DIP Gull Wing
