TLP2391(TPL,E

TLP2391(TPL,E

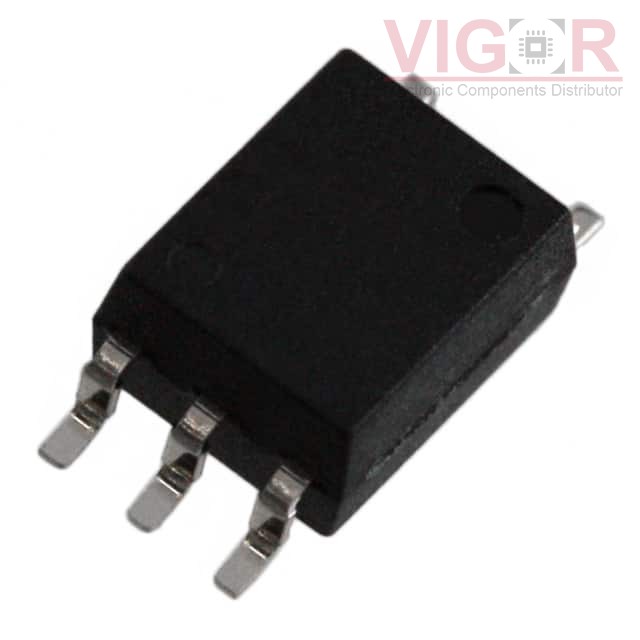

Image is for reference,
please contact us to get the real picture

Part No :

TLP2391(TPL,E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
X36 PB PHOTOCOUPLER DUAL POLARIT
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TLP2391(TPL,E PDF
Availability
0 pieces
Unit Price
$0.48000

Current price of TLP2391(TPL,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2391(TPL,E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:AC, DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:10MBd
Propagation Delay tpLH / tpHL (Max):100ns, 100ns
Rise / Fall Time (Typ):3ns, 3ns
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package:6-SO, 5 Lead
