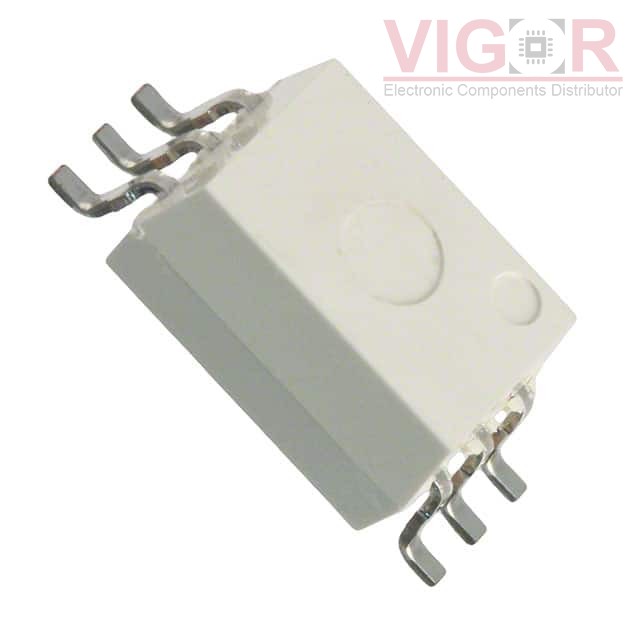

TLP716(TP,F)

Image is for reference,
please contact us to get the real picture

Part No :: TLP716(TP,F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISO 5KV PUSH PULL 6DIP GW

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: TLP716(TP,F) PDF

Availability: 0 pieces

Unit Price: ~~$1.72000~~

Current price of TLP716(TP,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP716(TP,F) Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	10 mA
Data Rate:	15MBd
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	15ns, 15ns
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP Gull Wing
