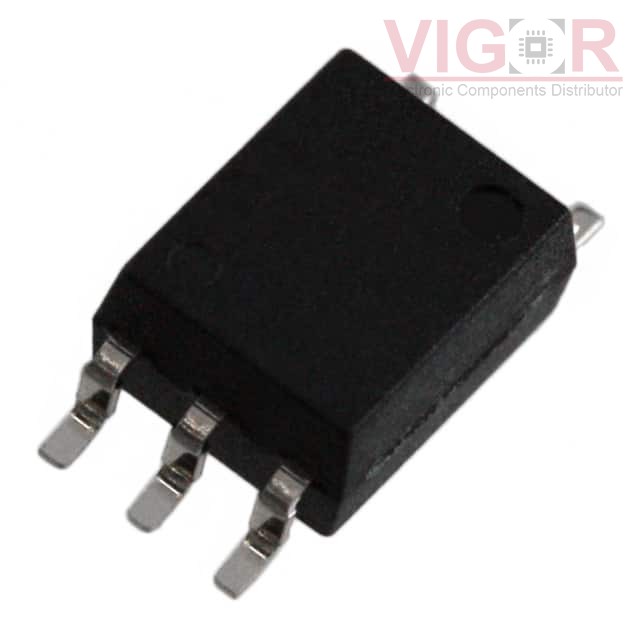

TLX9378(TPL,F

Image is for reference,
please contact us to get the real picture

Part No :: TLX9378(TPL,F

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: IC COUPLER; 4-PIN SO6; AECQ; ROH

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: TLX9378(TPL,F PDF

Availability: 2963 pieces

Unit Price: ~~$3.47000~~

Current price of TLX9378(TPL,F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLX9378(TPL,F Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	25 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	100ns, 100ns
Rise / Fall Time (Typ):	90ns, 30ns
Voltage - Forward (Vf) (Typ):	1.75V (Max)
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package:	6-SO, 5 Lead

Please confirm the specifications of the products when ordering.
