TLP2704(TP,E

TLP2704(TP,E

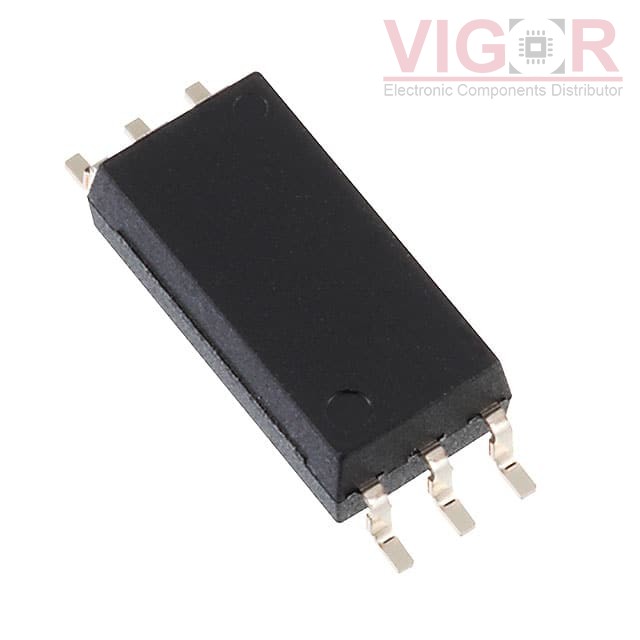

Image is for reference,
please contact us to get the real picture

Part No :

TLP2704(TP,E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
HIGH SPEED LOGIC OUTPUT COUPLER;
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
TLP2704(TP,E PDF
Availability
0 pieces
Unit Price
$0.53250

Current price of TLP2704(TP,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2704(TP,E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:15 mA
Data Rate:-
Propagation Delay tpLH / tpHL (Max):400ns, 550ns
Rise / Fall Time (Typ):-
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:4.5V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:6-SO
