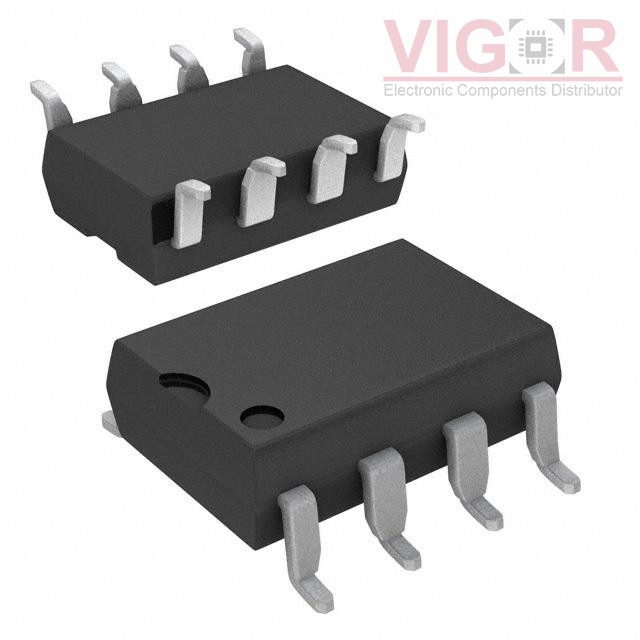

HCPL-2611-500E

Image is for reference,
please contact us to get the real picture

Part No :: HCPL-2611-500E

Manufacturer: Broadcom

Description: OPTOISO 3.75KV OPEN COLL 8DIP GW

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: HCPL-2611-500E PDF

Availability: 1771 pieces

Unit Price: ~~$3.36000~~

Current price of HCPL-2611-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-2611-500E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	100ns, 100ns
Rise / Fall Time (Typ):	24ns, 10ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-DIP Gull Wing
