HCPL2631M

HCPL2631M

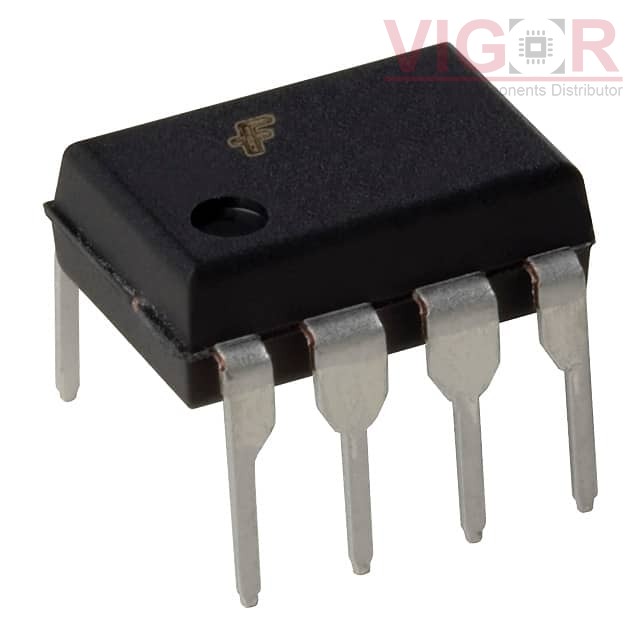

Image is for reference,
please contact us to get the real picture

Part No :

HCPL2631M

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 5KV 2CH OPEN COLL 8DIP
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HCPL2631M PDF
Availability
732 pieces
Unit Price
$3.24000

Current price of HCPL2631M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL2631M Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):5kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:25 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):30ns, 10ns
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):30mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 110°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
