HCPL2601S

HCPL2601S

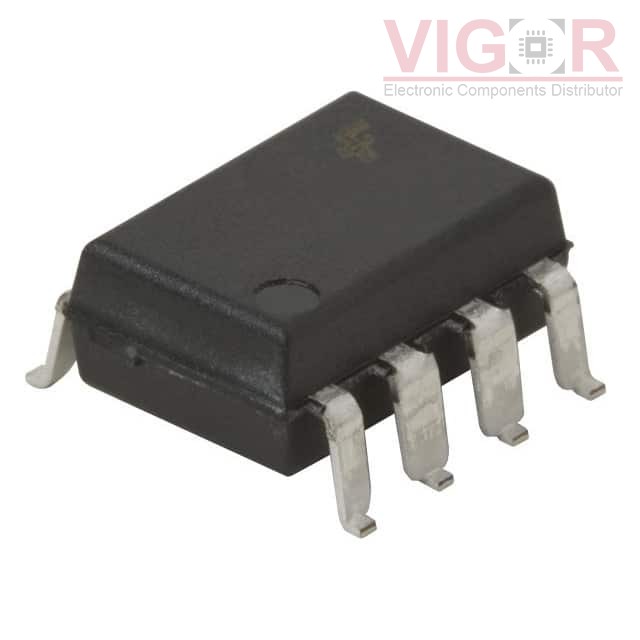

Image is for reference,
please contact us to get the real picture

Part No :

HCPL2601S

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 2.5KV OPN COLLECTOR 8SMD
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HCPL2601S PDF
Availability
5032 pieces
Unit Price
$2.10000

Current price of HCPL2601S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL2601S Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):5kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:50 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):50ns, 12ns
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):50mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
