TLP2761(TP,E)

TLP2761(TP,E)

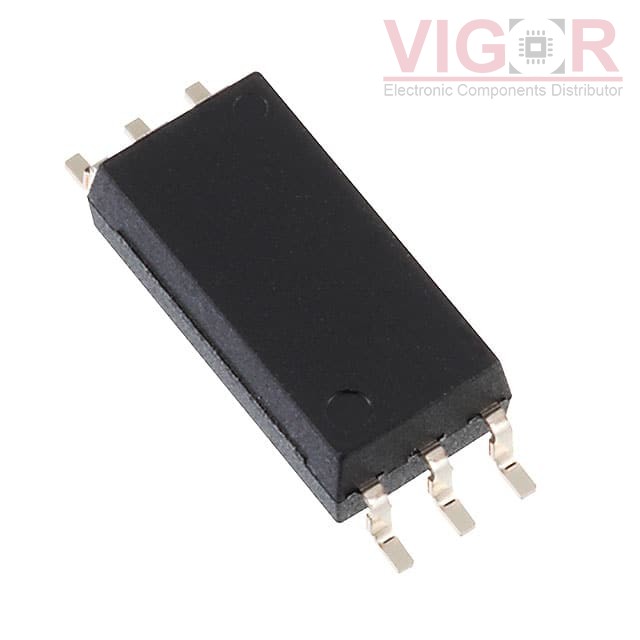

Image is for reference,
please contact us to get the real picture

Part No :

TLP2761(TP,E)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
HIGH SPEED LOGIC OUTPUT OPTOCOUP
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
TLP2761(TP,E) PDF
Availability
0 pieces
Unit Price
$0.40000

Current price of TLP2761(TP,E) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2761(TP,E) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:AC, DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:15MBd
Propagation Delay tpLH / tpHL (Max):80ns, 80ns
Rise / Fall Time (Typ):3ns, 3ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:-
