TLP2270(TP4,E

TLP2270(TP4,E

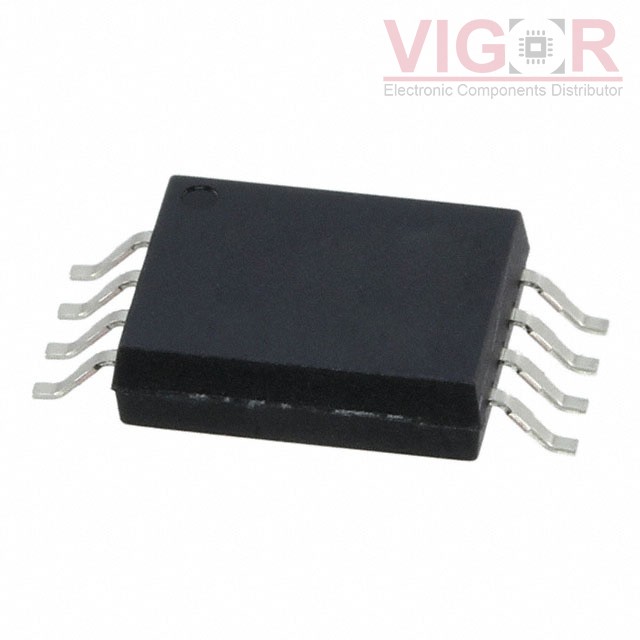

Image is for reference,
please contact us to get the real picture

Part No :

TLP2270(TP4,E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
PHOTOCOUPLER HI-SPEED LOW INPUT
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
TLP2270(TP4,E PDF
Availability
0 pieces
Unit Price
$2.09000

Current price of TLP2270(TP4,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2270(TP4,E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:20MBd
Propagation Delay tpLH / tpHL (Max):60ns, 60ns
Rise / Fall Time (Typ):1.3ns, 1ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):8mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:8-SOL
