PS9513L1-V-AX

PS9513L1-V-AX

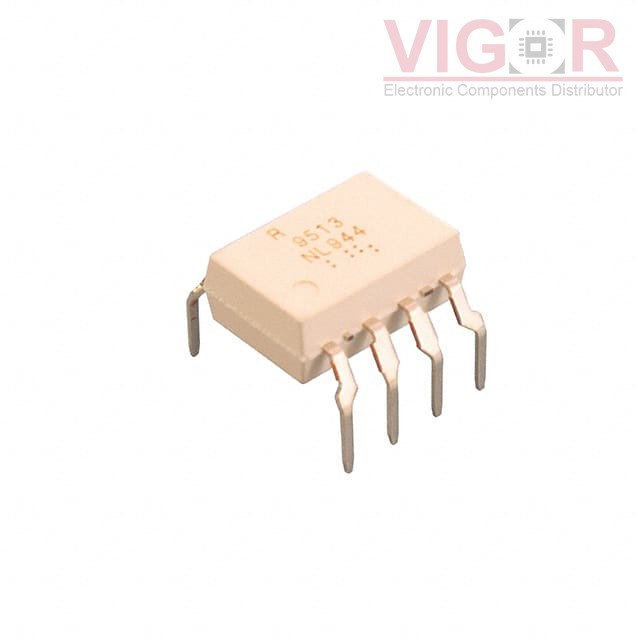

Image is for reference,
please contact us to get the real picture

Part No :

PS9513L1-V-AX

Manufacturer
Renesas Electronics America
Description
HI-SPD OPTOCPLR 8-PIN DIP
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
PS9513L1-V-AX PDF
Availability
50 pieces
Unit Price
$4.09000

Current price of PS9513L1-V-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9513L1-V-AX Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:15 mA
Data Rate:1Mbps
Propagation Delay tpLH / tpHL (Max):750ns, 500ns
Rise / Fall Time (Typ):-
Voltage - Forward (Vf) (Typ):1.65V
Current - DC Forward (If) (Max):25mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.400", 10.16mm)
Supplier Device Package:8-DIP
