ACPL-K74T-000E

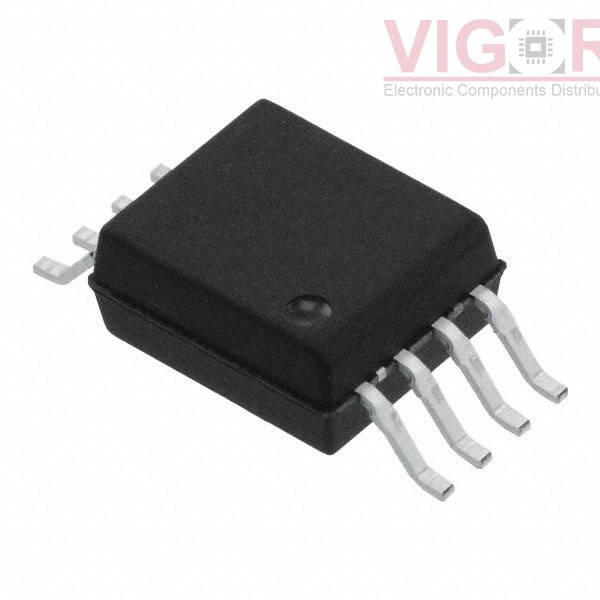

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-K74T-000E

Manufacturer: Broadcom

Description: OPTOISO 5KV 2CH PUSH PULL 8SO

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: ACPL-K74T-000E PDF

Availability: 389 pieces

Unit Price: ~~$7.22000~~

Current price of ACPL-K74T-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-K74T-000E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	-
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	35ns, 35ns
Rise / Fall Time (Typ):	10ns, 10ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:	8-SO Stretched

Please confirm the specifications of the products when ordering.
