ACNV4506-500E

ACNV4506-500E

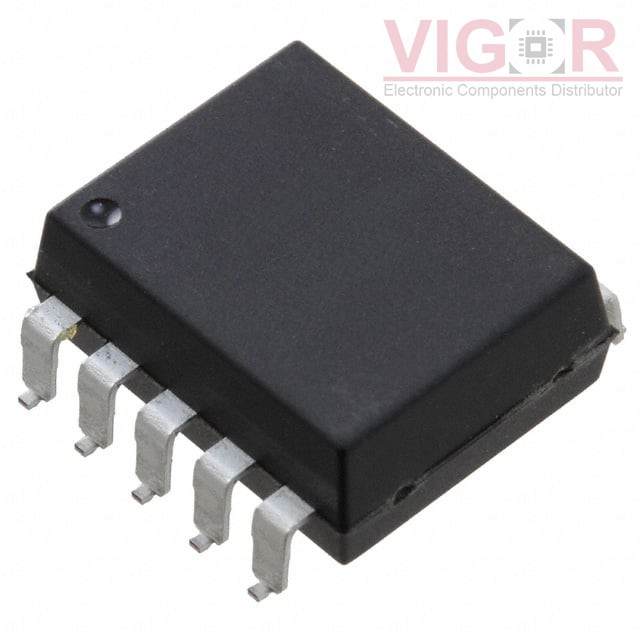

Image is for reference,
please contact us to get the real picture

Part No :

ACNV4506-500E

Manufacturer
Broadcom
Description
OPTOISO 7.5KV OPEN COLL 10DIP GW
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ACNV4506-500E PDF
Availability
0 pieces
Unit Price
$2.14889

Current price of ACNV4506-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACNV4506-500E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:7500Vrms
Common Mode Transient Immunity (Min):30kV/µs
Input Type:DC
Output Type:Open Collector, Schottky Clamped
Current - Output / Channel:15 mA
Data Rate:-
Propagation Delay tpLH / tpHL (Max):550ns, 400ns
Rise / Fall Time (Typ):-
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):25mA
Voltage - Supply:4.5V ~ 30V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:10-SMD, Gull Wing
Supplier Device Package:10-DIP Gull Wing
