ACPL-W456-560E

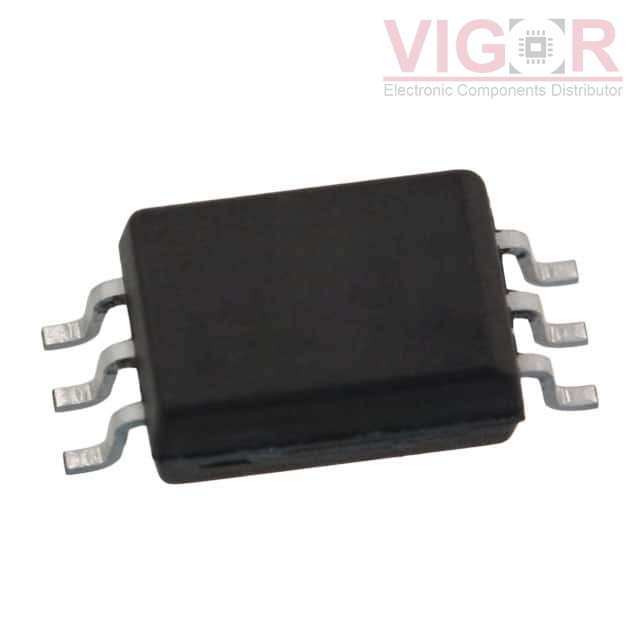

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-W456-560E

Manufacturer: Broadcom

Description: OPTOISO 5KV OPEN COLLECTOR 6SO

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: ACPL-W456-560E PDF

Availability: 0 pieces

Unit Price: ~~$1.32288~~

Current price of ACPL-W456-560E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-W456-560E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	15 mA
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	550ns, 400ns
Rise / Fall Time (Typ):	-
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	4.5V ~ 30V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SO
