ACPL-K64L-000E

ACPL-K64L-000E

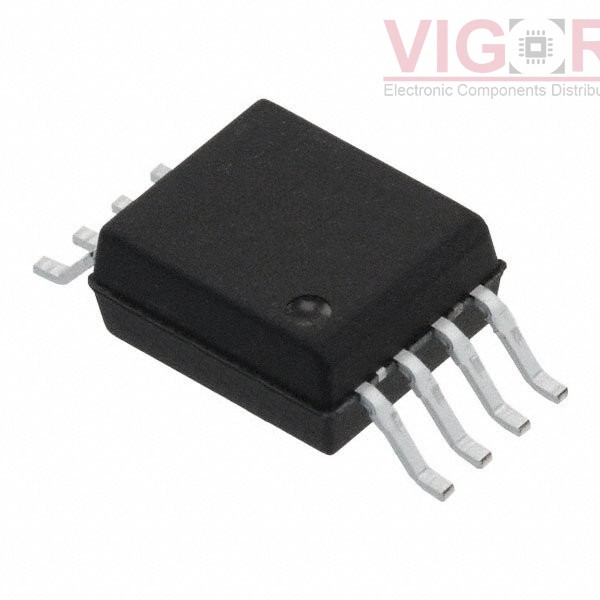

Image is for reference,
please contact us to get the real picture

Part No :

ACPL-K64L-000E

Manufacturer
Broadcom
Description
OPTOISO 5KV 2CH PUSH PULL 8SO
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ACPL-K64L-000E PDF
Availability
146 pieces
Unit Price
$5.67000

Current price of ACPL-K64L-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-K64L-000E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:10MBd
Propagation Delay tpLH / tpHL (Max):80ns, 80ns
Rise / Fall Time (Typ):12ns, 12ns
Voltage - Forward (Vf) (Typ):1.3V
Current - DC Forward (If) (Max):8mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:8-SO Stretched
