RV1S9160ACCSP-100C#SC0

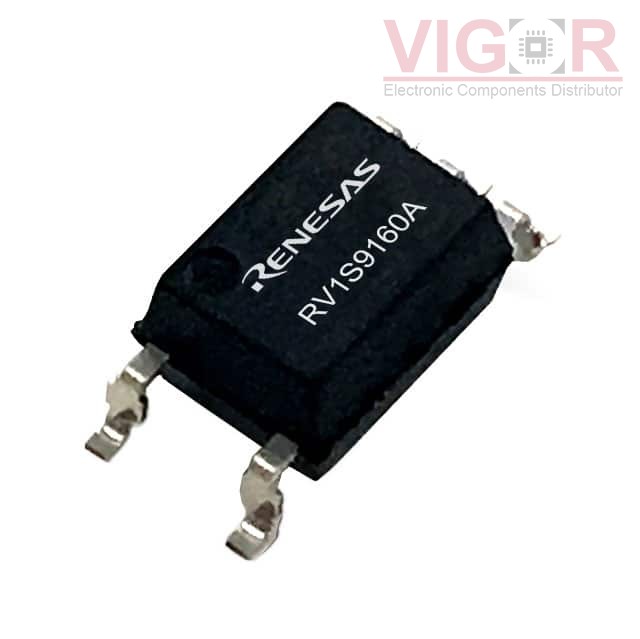

Image is for reference,
please contact us to get the real picture

Part No :: RV1S9160ACCSP-100C#SC0

Manufacturer: Renesas Electronics America

Description: HI-SPEED OPTOCPLR SO-5

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: RV1S9160ACCSP-100C#SC0 PDF

Availability: 736 pieces

Unit Price: ~~$2.00000~~

Current price of RV1S9160ACCSP-100C#SC0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RV1S9160ACCSP-100C#SC0 Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	50kV/µs
Input Type:	-
Output Type:	CMOS
Current - Output / Channel:	10 mA
Data Rate:	15Mbps
Propagation Delay tpLH / tpHL (Max):	60ns, 60ns
Rise / Fall Time (Typ):	5ns, 5ns
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	6mA
Voltage - Supply:	2.7V ~ 5.5V
Operating Temperature:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	5-SOP
