HCPL-2201-500E

HCPL-2201-500E

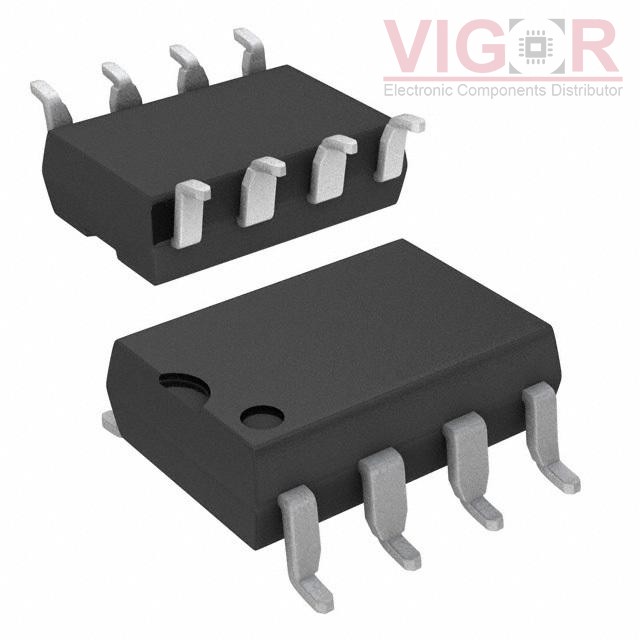

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-2201-500E

Manufacturer
Broadcom
Description
OPTOISO 3.75KV PUSH PULL 8DIP GW
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HCPL-2201-500E PDF
Availability
486 pieces
Unit Price
$3.27000

Current price of HCPL-2201-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-2201-500E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):1kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:5MBd
Propagation Delay tpLH / tpHL (Max):300ns, 300ns
Rise / Fall Time (Typ):30ns, 7ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-DIP Gull Wing
