HCPL-6231

HCPL-6231

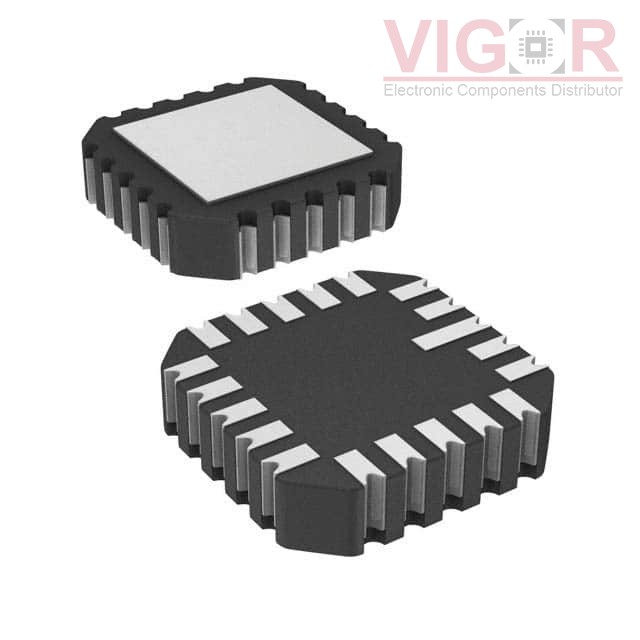

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-6231

Manufacturer
Broadcom
Description
OPTOISO 1.5KV PUSH PULL 20LCCC
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
HCPL-6231 PDF
Availability
0 pieces
Unit Price
$178.74000

Current price of HCPL-6231 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-6231 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:1500VDC
Common Mode Transient Immunity (Min):1kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:15 mA
Data Rate:5MBd
Propagation Delay tpLH / tpHL (Max):350ns, 350ns
Rise / Fall Time (Typ):45ns, 10ns
Voltage - Forward (Vf) (Typ):1.3V
Current - DC Forward (If) (Max):8mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:20-CLCC
Supplier Device Package:20-LCCC (8.89x8.89)
