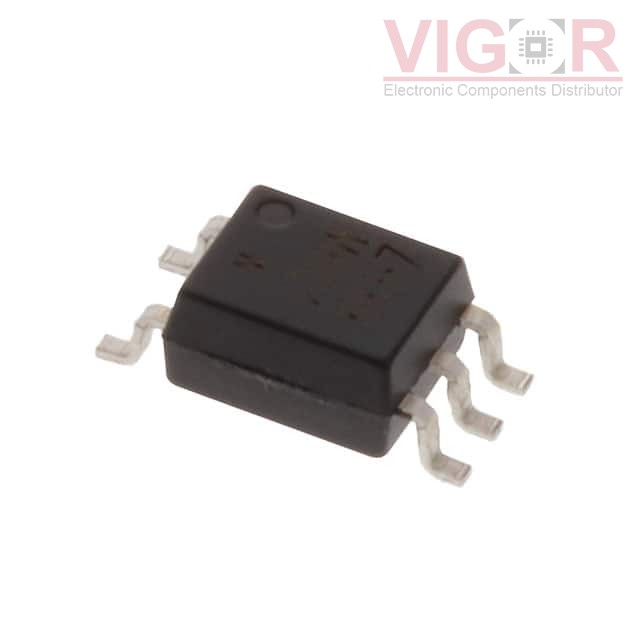

LTV-M601

Image is for reference,
please contact us to get the real picture

Part No :: LTV-M601

Manufacturer: Lite-On, Inc.

Description: OPTOCOUPLER HS PHOTO TRANS 5SOP

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: LTV-M601 PDF

Availability: 2291 pieces

Unit Price: ~~$1.63000~~

Current price of LTV-M601 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTV-M601 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	15MBd
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	21ns, 7ns
Voltage - Forward (Vf) (Typ):	1.38V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	2.7V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	5-SOP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
