ACPL-K24L-560E

ACPL-K24L-560E

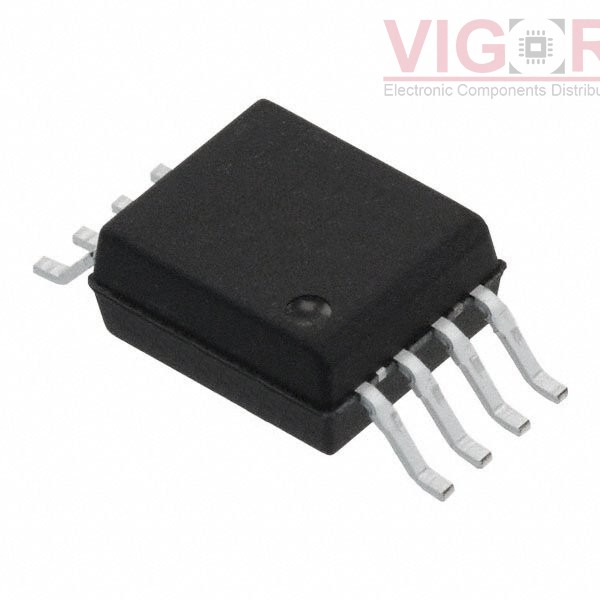

Image is for reference,
please contact us to get the real picture

Part No :

ACPL-K24L-560E

Manufacturer
Broadcom
Description
OPTOISO 5KV 2CH PUSH PULL 8SO
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ACPL-K24L-560E PDF
Availability
0 pieces
Unit Price
$1.94616

Current price of ACPL-K24L-560E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-K24L-560E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):25kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:5MBd
Propagation Delay tpLH / tpHL (Max):250ns, 250ns
Rise / Fall Time (Typ):11ns, 11ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):8mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:8-SO
