ACFL-6211T-500E

ACFL-6211T-500E

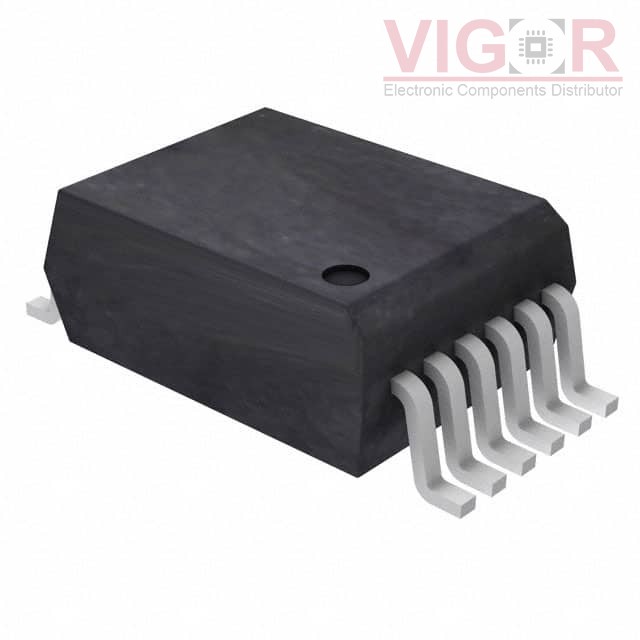

Image is for reference,
please contact us to get the real picture

Part No :

ACFL-6211T-500E

Manufacturer
Broadcom
Description
OPTOISO 5KV 2CH PSH PULL SO12
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ACFL-6211T-500E PDF
Availability
0 pieces
Unit Price
$3.88596

Current price of ACFL-6211T-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACFL-6211T-500E Specifications
Type Description
Series:Automotive, AEC-Q100, R²Coupler™
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:1/1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:15MBd
Propagation Delay tpLH / tpHL (Max):35ns, 35ns
Rise / Fall Time (Typ):10ns, 10ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:12-BSOP (0.295", 7.50mm Width)
Supplier Device Package:12-SO
