NTE3094

NTE3094

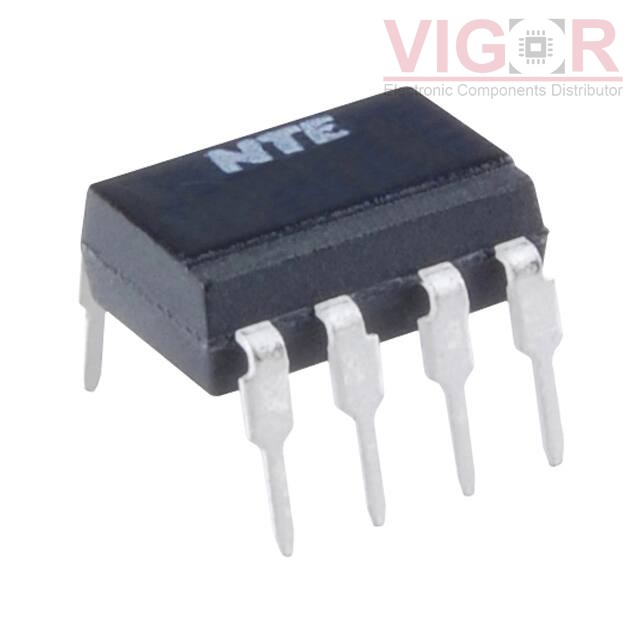

Image is for reference,
please contact us to get the real picture

Part No :

NTE3094

Manufacturer
NTE Electronics, Inc.
Description
OPTOCOUPLER/DUAL TTL OUT
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
NTE3094 PDF
Availability
40 pieces
Unit Price
$17.43000

Current price of NTE3094 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE3094 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:3000VDC
Common Mode Transient Immunity (Min):500V/µs (Typ)
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:16 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):25ns, 35ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):15mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
