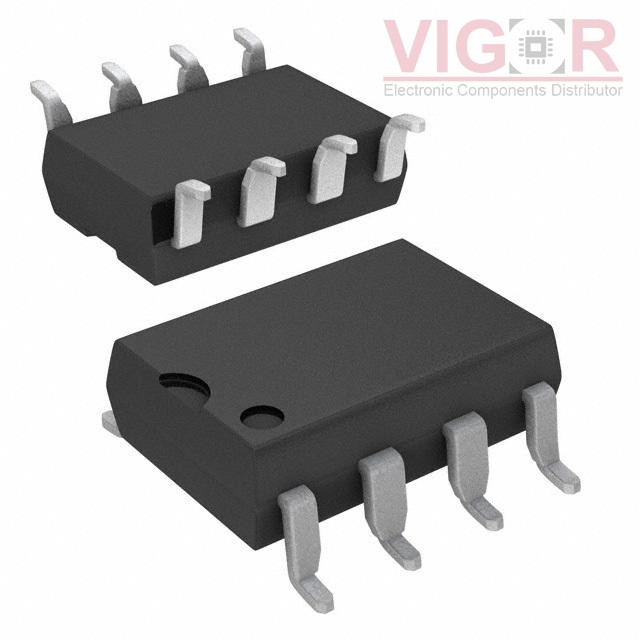

HCPL-7720-560E

HCPL-7720-560E

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-7720-560E

Manufacturer
Broadcom
Description
OPTOISO 3.75KV PUSH PULL 8DIP GW
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HCPL-7720-560E PDF
Availability
0 pieces
Unit Price
$2.75706

Current price of HCPL-7720-560E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-7720-560E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):10kV/µs
Input Type:Logic
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:25MBd
Propagation Delay tpLH / tpHL (Max):40ns, 40ns
Rise / Fall Time (Typ):9ns, 8ns
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-DIP Gull Wing
