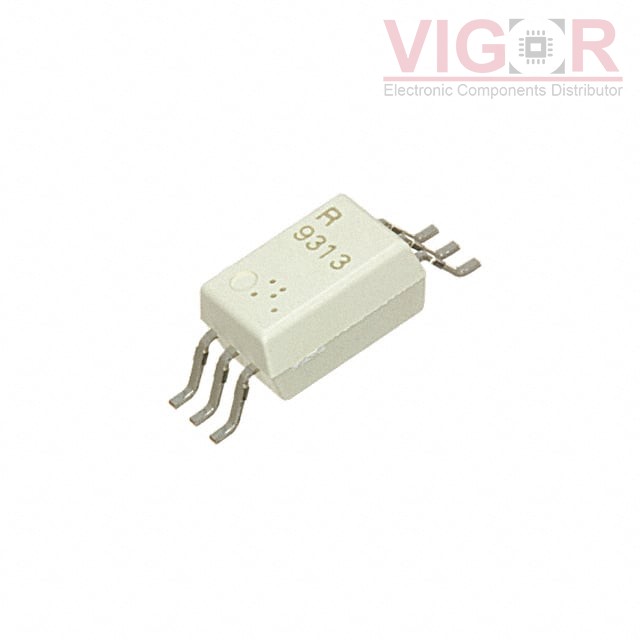

PS9313L-E3-AX

PS9313L-E3-AX

Image is for reference,
please contact us to get the real picture

Part No :

PS9313L-E3-AX

Manufacturer
Renesas Electronics America
Description
HI-SPD OPTOCPLR 6PIN SDIP
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
PS9313L-E3-AX PDF
Availability
0 pieces
Unit Price
$2.01519

Current price of PS9313L-E3-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9313L-E3-AX Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:15 mA
Data Rate:1Mbps
Propagation Delay tpLH / tpHL (Max):750ns, 500ns
Rise / Fall Time (Typ):-
Voltage - Forward (Vf) (Typ):1.56V
Current - DC Forward (If) (Max):25mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-40°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:6-SDIP
