PS9687L2-V-A

PS9687L2-V-A

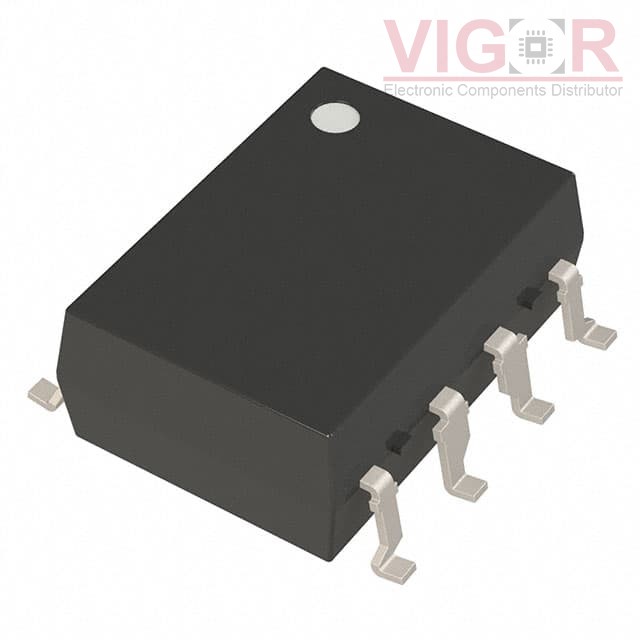

Image is for reference,
please contact us to get the real picture

Part No :

PS9687L2-V-A

Manufacturer
CEL (California Eastern Laboratories)
Description
OPTOISO 5KV OPEN COLL 8SMD GW
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PS9687L2-V-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PS9687L2-V-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9687L2-V-A Specifications
Type Description
Series:NEPOC
Package:Tube
Part Status:Obsolete
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):10kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:25 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):20ns, 10ns
Voltage - Forward (Vf) (Typ):1.65V
Current - DC Forward (If) (Max):30mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-DIP Gull Wing
