TLP2405(TP,F)

TLP2405(TP,F)

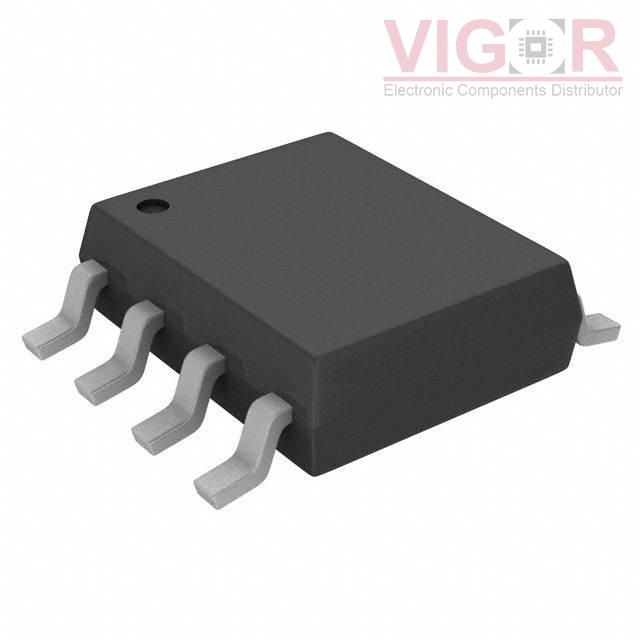

Image is for reference,
please contact us to get the real picture

Part No :

TLP2405(TP,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 3.75KV PSH PULL 8SOIC
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
TLP2405(TP,F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP2405(TP,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2405(TP,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:5Mbps
Propagation Delay tpLH / tpHL (Max):250ns, 250ns
Rise / Fall Time (Typ):30ns, 30ns
Voltage - Forward (Vf) (Typ):1.57V
Current - DC Forward (If) (Max):25mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO
