HCPL0661

HCPL0661

Image is for reference,
please contact us to get the real picture

Part No :

HCPL0661

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 3.75KV 2CH OPEN COLL 8SO
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
HCPL0661 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HCPL0661 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL0661 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):25kV/µs
Input Type:DC
Output Type:Open Collector, Schottky Clamped
Current - Output / Channel:50 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):50ns, 12ns
Voltage - Forward (Vf) (Typ):1.75V (Max)
Current - DC Forward (If) (Max):50mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT H11N3SM

H11N3SM

OPTOISO 4.17KV OPN COLL 6SMD

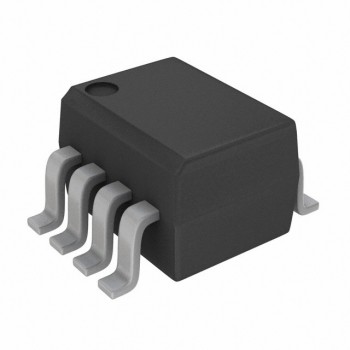

HOT SFH6720T
