TLP2761F(F)

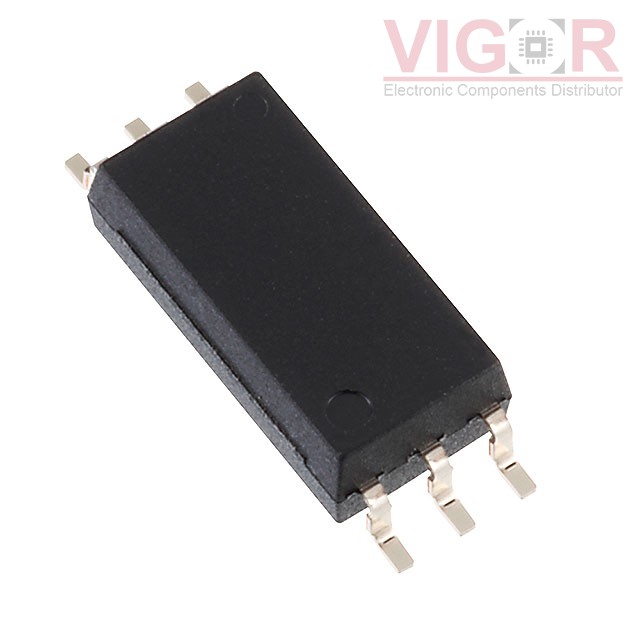

Image is for reference,
please contact us to get the real picture

Part No :

TLP2761F(F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOCOUPLER TRANS
Catalog
Optoisolators - Logic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
TLP2761F(F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP2761F(F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):20kV/µs
Input Type:AC, DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:10 mA
Data Rate:15MBd
Propagation Delay tpLH / tpHL (Max):80ns, 80ns
Rise / Fall Time (Typ):3ns, 3ns
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):10mA
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:6-SO
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
