ACPL-M49U-500E

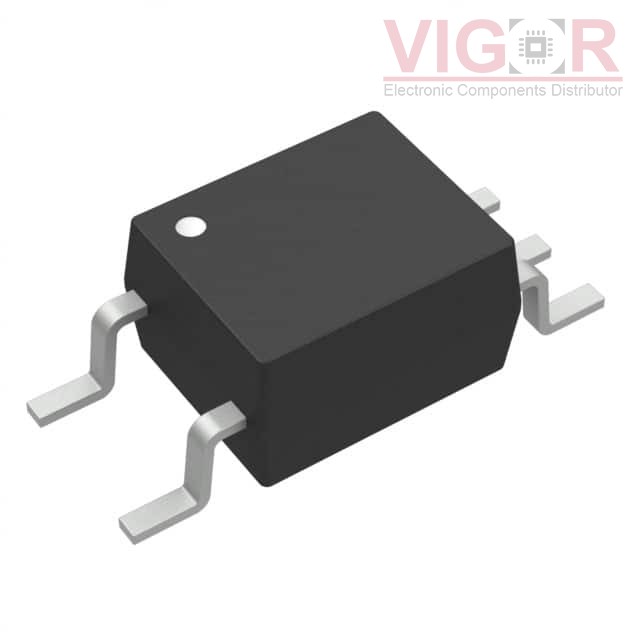

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-M49U-500E

Manufacturer: Broadcom

Description: OPTOISOLATOR 3.75KV TRANSISTOR

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: ACPL-M49U-500E PDF

Availability: 0 pieces

Unit Price: ~~$1.15752~~

Current price of ACPL-M49U-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-M49U-500E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	32% @ 10mA
Current Transfer Ratio (Max):	80% @ 10mA
Turn On / Turn Off Time (Typ):	20µs, 20µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	5-SO
